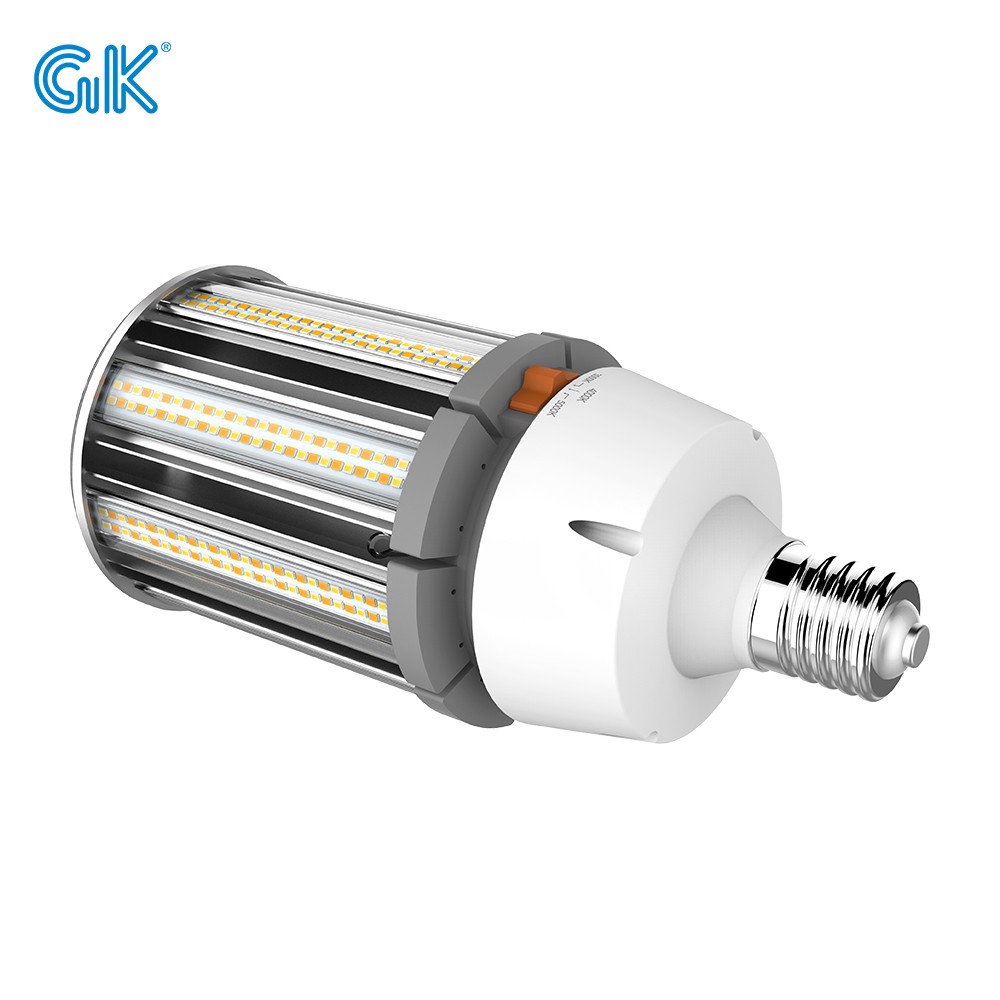

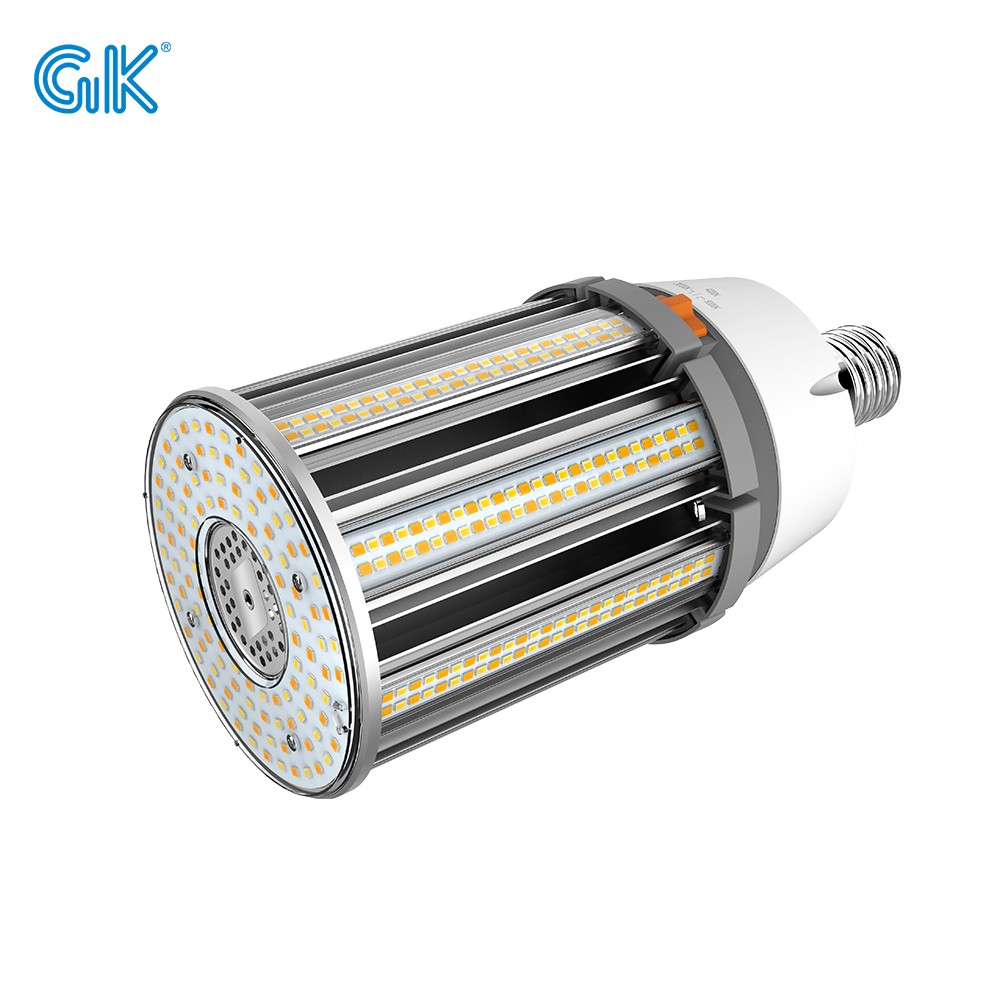

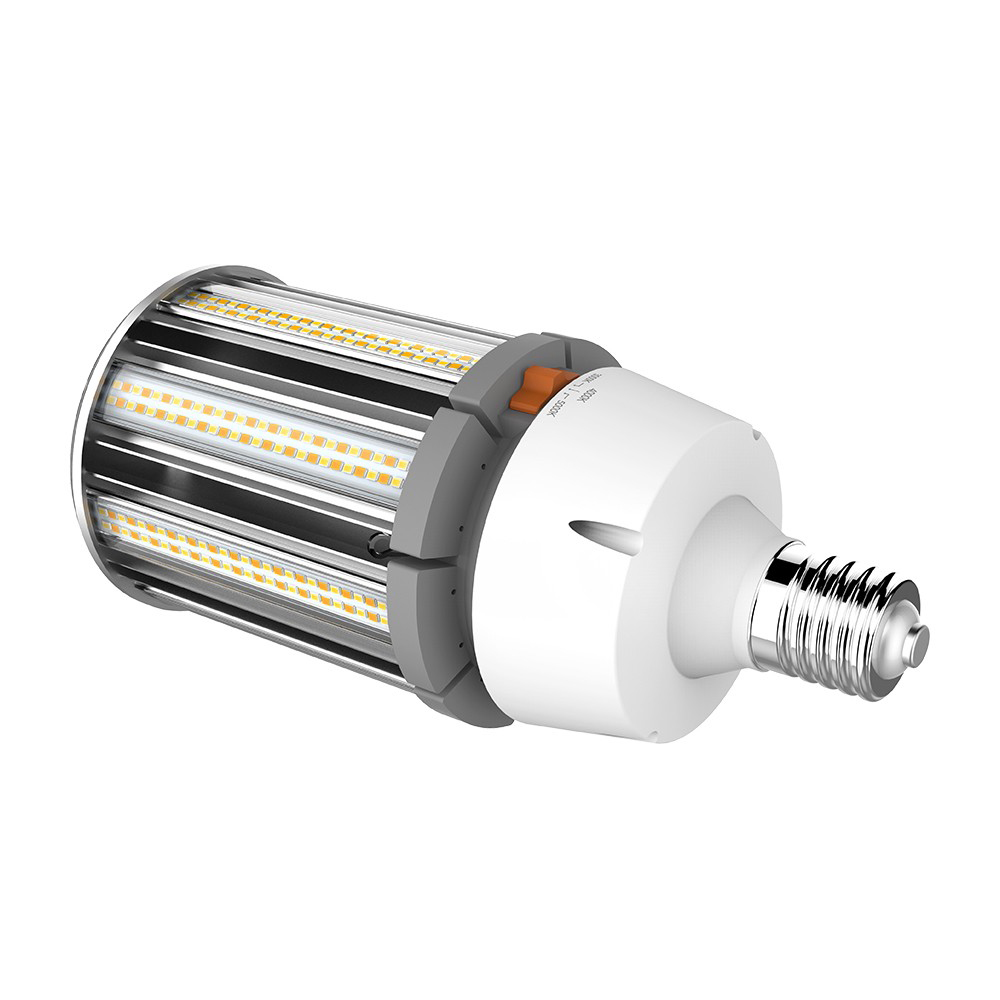

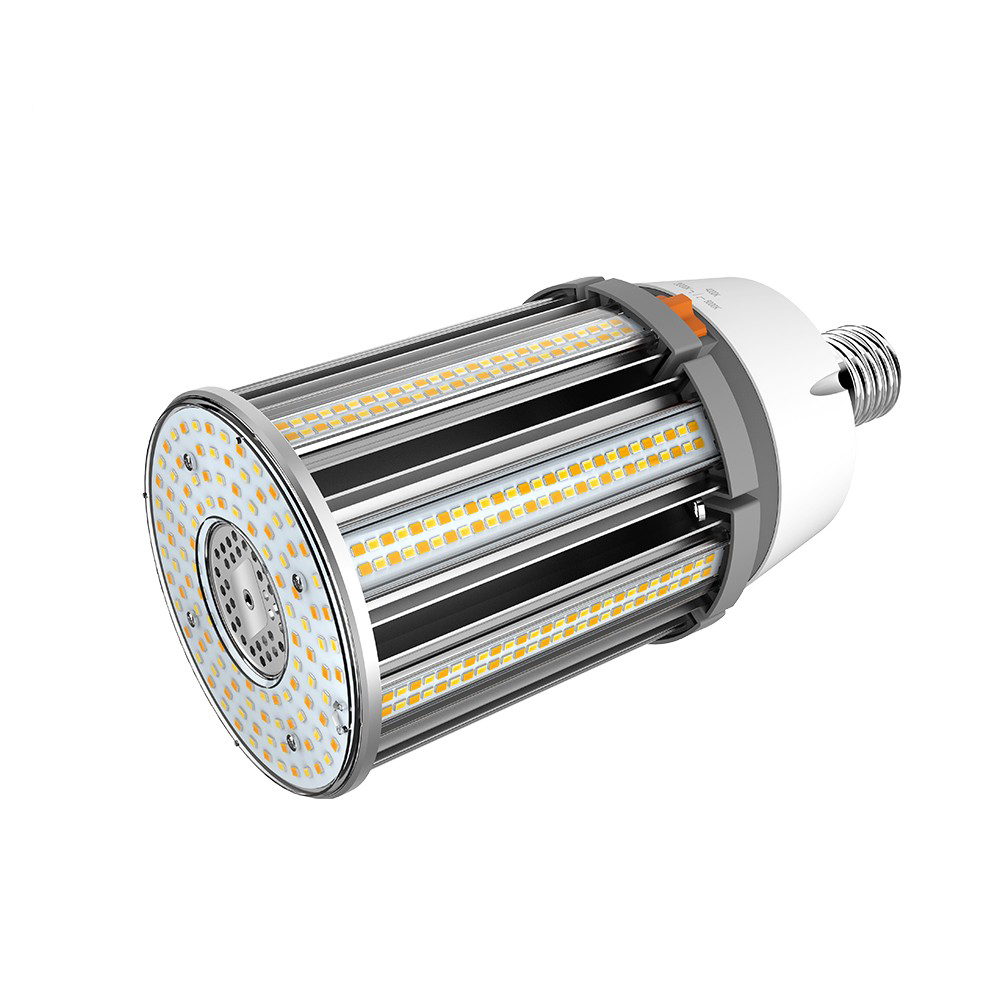

High Power Microwave Dimmer Sensor LED Corn Lamp

Information | Application | Video

Advantage:

China&US patent

high light efficacy, 150lm/w

most compact size for total enclosed fixture

higher quality guarantee,defect rate<0.5%

More watt option 36-120w 150lm/w and CCT selectable

DLC 5.1/UL/Erp/CE approval

360D design for most fixtures

Intelligent interface for plug and play sensors like MW sensor, PIR sensor, WIFI sensor etc

4 protections for led driver solution(Varistor/ lamp body/Power supply overheating, over-voltage protection)

CCT selectable: 3000K/4000K/5000K
3 in 1 dimming LED lamp (0-10V dimming, PWM Dimming, Resistance dimming)

GK LED Corn Light Series lamps to use Rubycon driver,

Samsung chips,

IP64 damp location-rated design, waterproof, dust-proof, mosquito proof,

The multifunctional interface driver is sealed with thermal paste,

active heat dissipation with aircraft-grade aluminum,

360-degree beam angle, flame retardant materials,

suitable for use in totally enclosed fixtures.

Direct wire lamps, must bypass the ballast.

MODEL NUMBER	VOLTAGE	LUMEN	WEIGHT (N.W./PC)	EQUAL TO

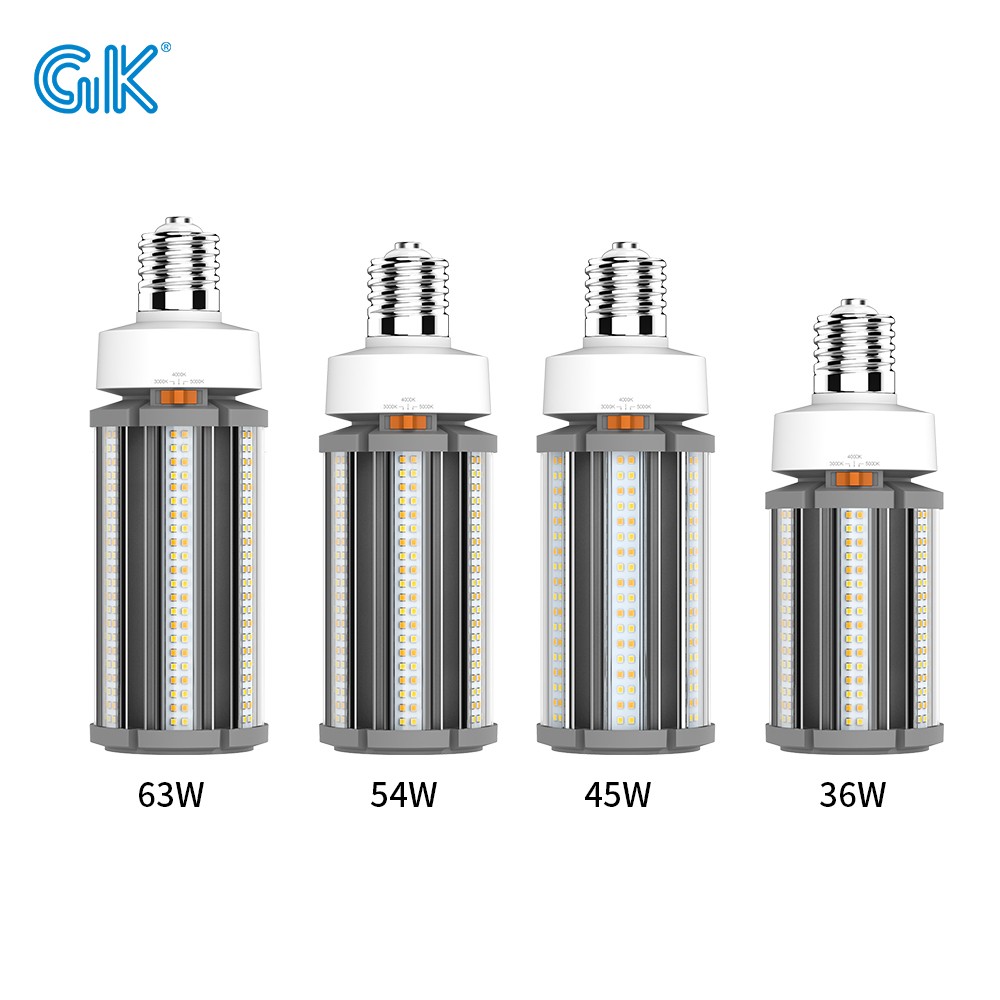

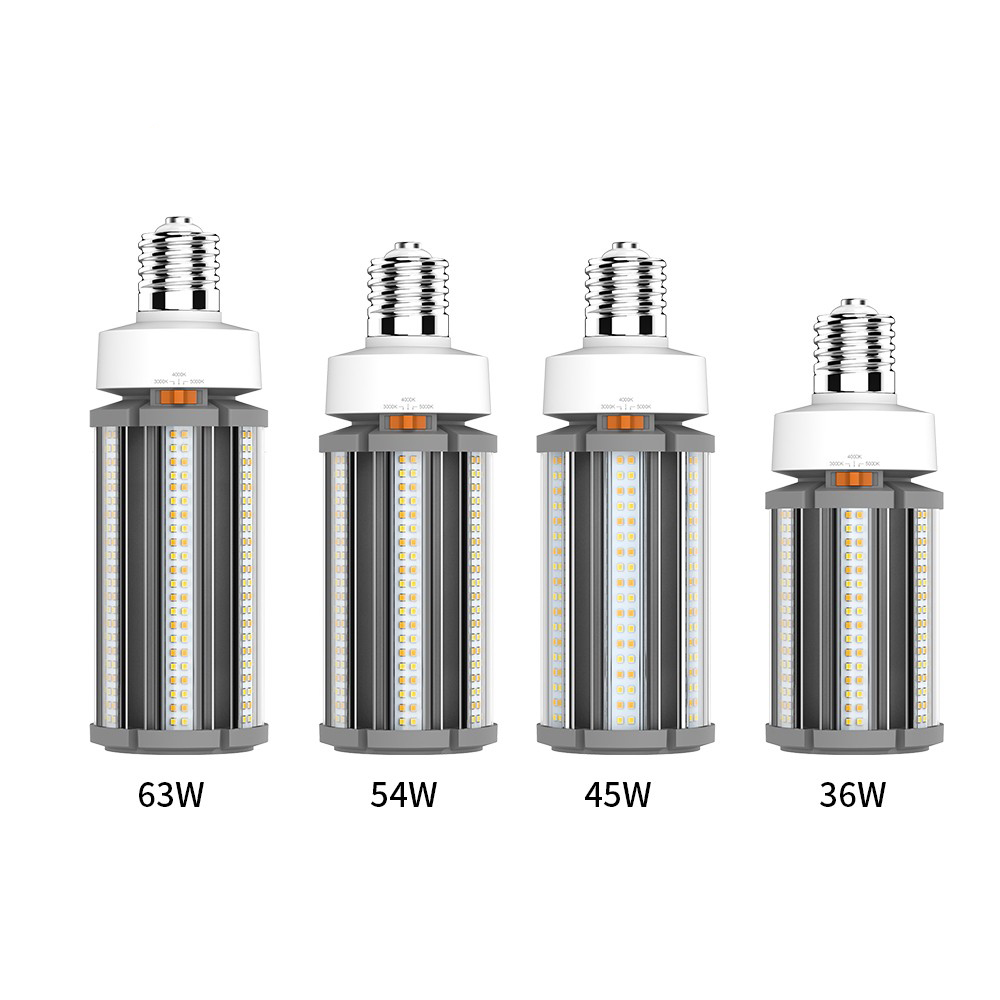

GKS39-36W-09	100-277V	5400+10%	0.64kg	175W HPS/MHL
GKS39-45W-09	100-277V	6700+10%	0.73kg	200W HPS/MHL
GKS39-54W-09	100-277V	8100+10%	0.75kg	250W HPS/MHL
GKS39-63W-09	100-277V	9400+10%	0.82kg	280W HPS/MHL

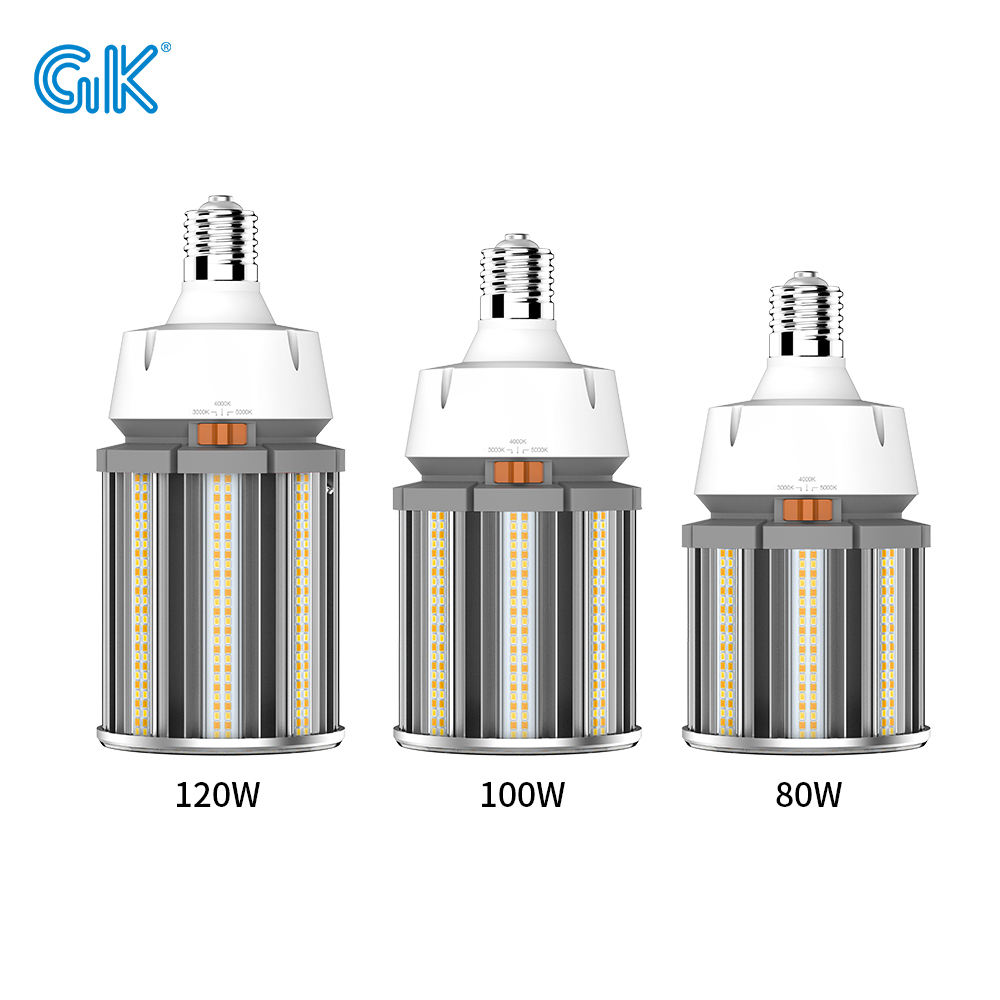

GKS39-80W-09	100-277V	12000+10%	1.33kg	320W HPS/MHL
GKS39-100W-09	100-277V	15000+10%	1.45kg	400W HPS/MHL

GKS39-120W-09

100-277V

18000+10%

1.58kg

500W HPS/MHL

High Power Microwave Dimmer Sensor LED Corn Lamp

WATTBASE	E26(Size mm(X0.0393=inch)	E27	EX39	E39	E40
GKS39-36W-09	∅85*202	∅85*205	∅85*202	∅85*219	∅85*223
GKS39-45W-09	∅85*232	∅85*235	∅85*249	∅85*249	∅85*253
GKS39-54W-09	∅85*232	∅85*235	∅85*249	∅85*249	∅85*253
GKS39-63W-09	∅85*247	∅85*250	∅85*264	∅85*264	∅85*268
GKS39-80W-09			∅130*247	∅130*247	∅130*250
GKS39-100W-09			∅130*262	∅130*262	∅130*265
GKS39-120W-09			∅130*283	∅130*283	∅130*285

High Power Microwave Dimmer Sensor LED Corn Lamp

1. 3 in 1 dimming LED lamp

(0-10V dimming, PWM Dimming, Resistance dimming)

2. WiFi control LED lamp

App-Dimming & time control. Support group or single operation

3. Sensor LED lamp

Microwave sensor, PIR sensor, WiFi sensor, Photocell sensor

Sensor instruction:

Stand-by dim level 0-20%-40%-60%

Hold time: 30s-90s-5m-10m

Wall pack, Acorn, Canopy, Garage light, Post top, Shoe box, Cobra Head, Flood light

Multifunctional interface IP64 damp location-rated design, waterproof,dust-proof, mosquito proof. and have a 360 degree beam angle which for lights commercial and industrial spaces such as factories,supermarkets and shopping malls.
