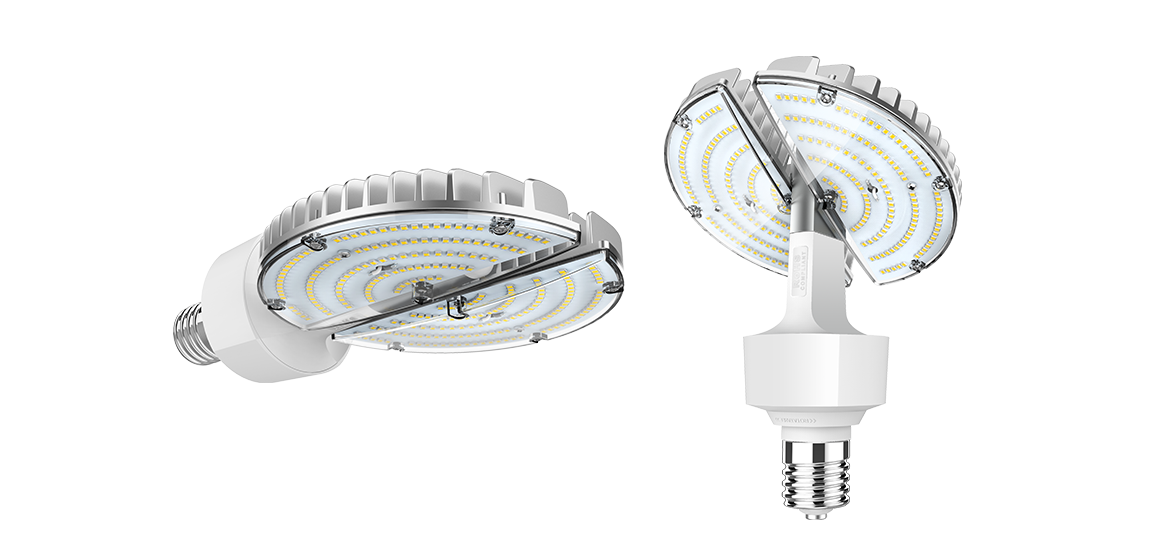

Transformer UFO LED High Bay
  • 50W 70W 100W
  • Warm, Daylight, Natural(2700K – 6000K)
  • E26 E27 E39 E40
  • -30°C - 45°C
  • 360°
  • 150lm/w
  • IP64
  • 50,000 Hours
  • 4KV Surge Protection
  • Suitable for Enclosed Fixture
  • High Efficiency LED
  • Easy to Installation


Transformer UFO LED High Bay-50W 70W 100W

·Cost effective solution for highbay and lowbay applications, replacing up to 400W HID fixtures

· 150 lm/w ultra-high efficiency delivers superior performance over traditional HID
· Lasts 3x longer than metal halide or HPS
· Ballast bypass, connects to line voltage
· Up to 80% energy saving
· Solid state, no fans or moving parts
· 7% upper light for better lighting performance
· 5 years warranty

·U.S, China, Europe patented design

· Reddot award

· suitable for totally enclosed fixture

· CE/UL/CUL/DLC 5.1

· 350 rotatable E base

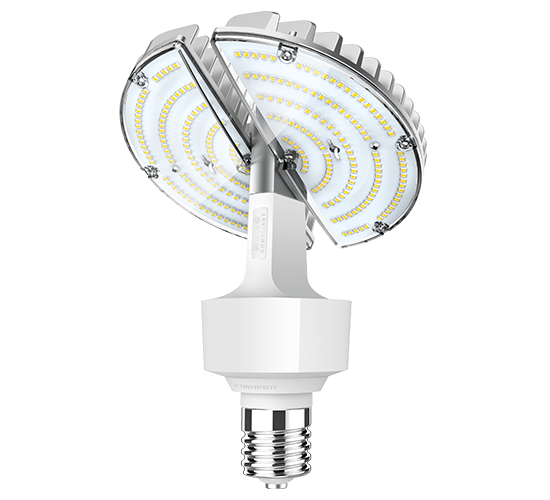

· Dark sky angle adjustable

· Filed-adjustable design: Suitable for shoebox, post top, high bay fixtures

· Intelligent interface for plug and play sensors like MW sensor, PIR sensor, WIFI sensor etc

· 4 protections for led driver solution(Varistor/ lamp body/Power supply overheating, over-voltage protection)

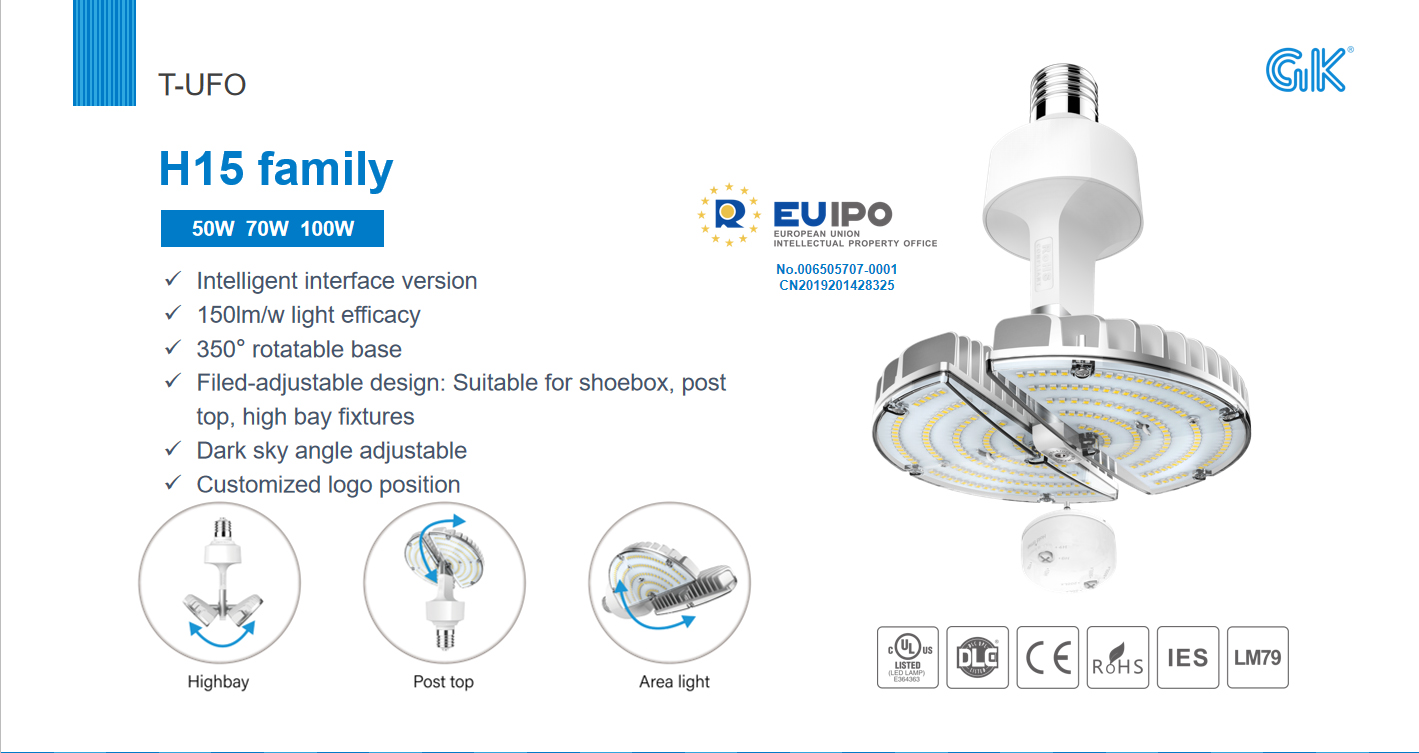

Transformer UFO LED High Bay H15-50W 70W 100W


  • Adaptable for High Bay, Lantern/Post Top or Shoebox/Low Bay applications

  • Single colour temperature 4500K

  • IP40 rated housing

  • Optional PIR Sensor available

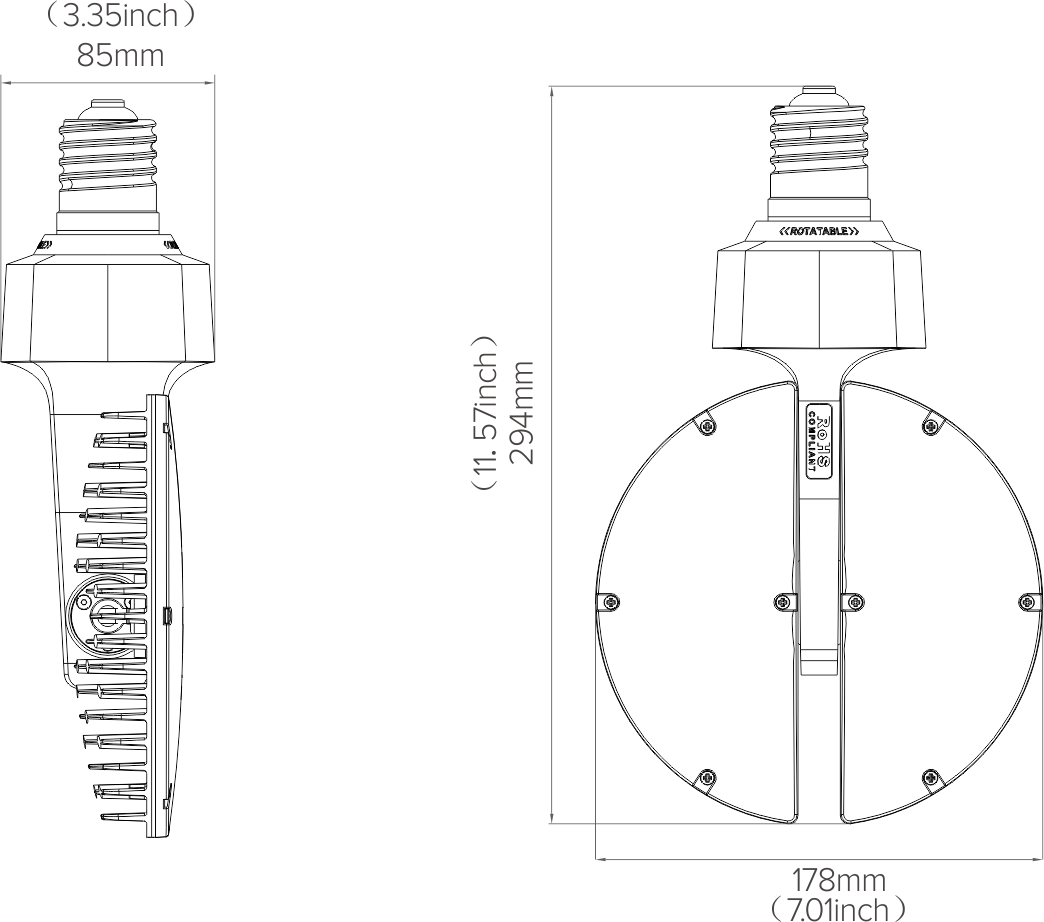

DxL(unit:inch inchx25.4=mm)


WATT/BASE

E26

E27

E39

E40

H15-01

∅274*178*85

∅276*178*85

∅294*178*85

∅298*178*85




Transformer UFO LED High Bay H15-50W 70W 100W


Application:

1. 3 in 1 dimming LED lamp

(0-10V dimming, PWM Dimming, Resistance dimming)

2. WiFi control LED lamp

App-Dimming & time control. Support group or single operation

3. Sensor LED lamp

Microwave sensor, PIR sensor, WiFi sensor, Photocell sensor

Sensor instruction:

Stand-by dim level 0-20%-40%-60%

Hold time: 30s-90s-5m-10m

100-277V AC(50-60Hz), PF≥0.9, CRI≥80,

IES UL LM80 LM79

WIFI control area: as long as the lamp and APP is connected to the same router.



150 lm/w ultra-high efficiency delivers superior performance over traditional HID. Dark sky angle adjustable, CE/UL/CUL/DLC 5.1, up to 80% energy saving.
