LED outdoor High Wattage Three in One Design GK-F51

Information | Application | Video

Product Overview

The F51 Three-in-One LED Wallpack revolutionizes façade lighting by integrating traditional wallpack, full-cutoff, and wall-washer optics into a single fixture. Its patented 2-in-1 design allows installers to select the exact beam pattern on site, eliminating the need for multiple SKUs. Ideal for retail, schools, hospitals, parking garages, and public facilities, the F51 delivers adaptable, code-compliant illumination with minimal inventory and labor costs.

Key Features

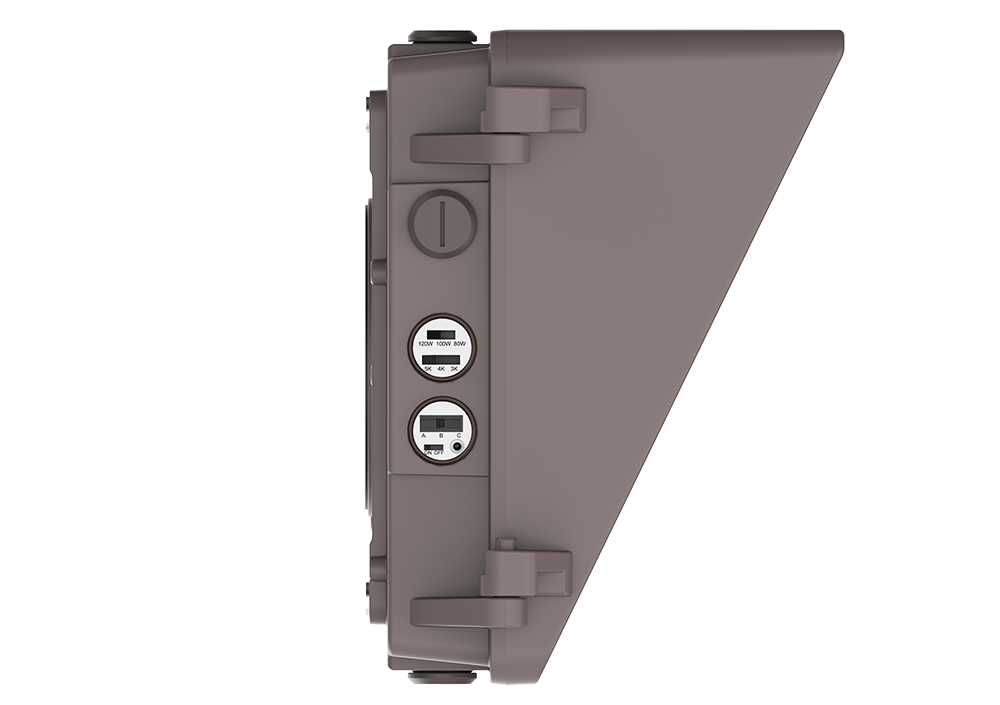

2-in-1 Beam Technology – Switch between wallpack, full-cutoff, or wall-washer modes with a simple selector.
Selectable Wattage – 40 / 60 / 80 / 100 / 120 / 150 W to match any lighting requirement.
3 CCT Options – 3000 K, 4000 K, 5000 K field-selectable for perfect ambiance.
Built-in Photocell – Dusk-to-dawn ON/OFF for automatic energy savings.

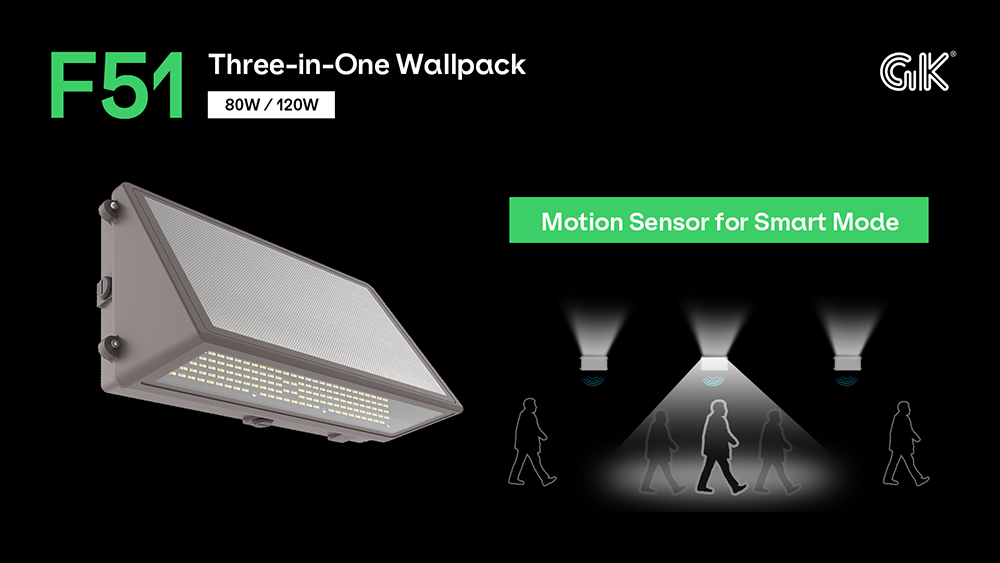

Optional Motion Sensor – Microwave or PIR sensors available for enhanced control.

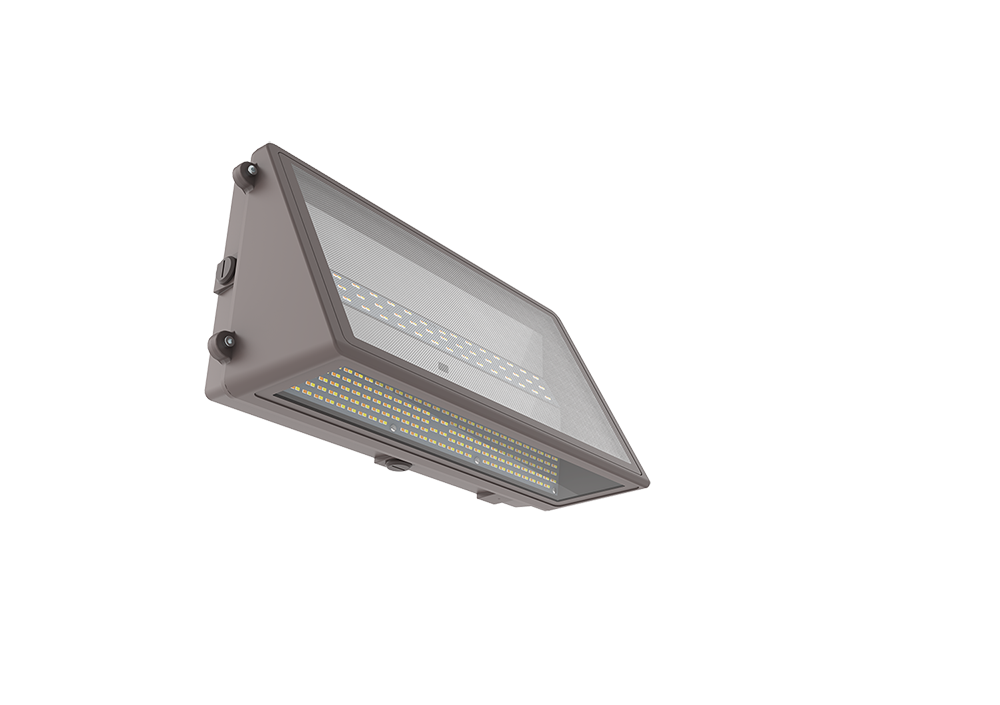

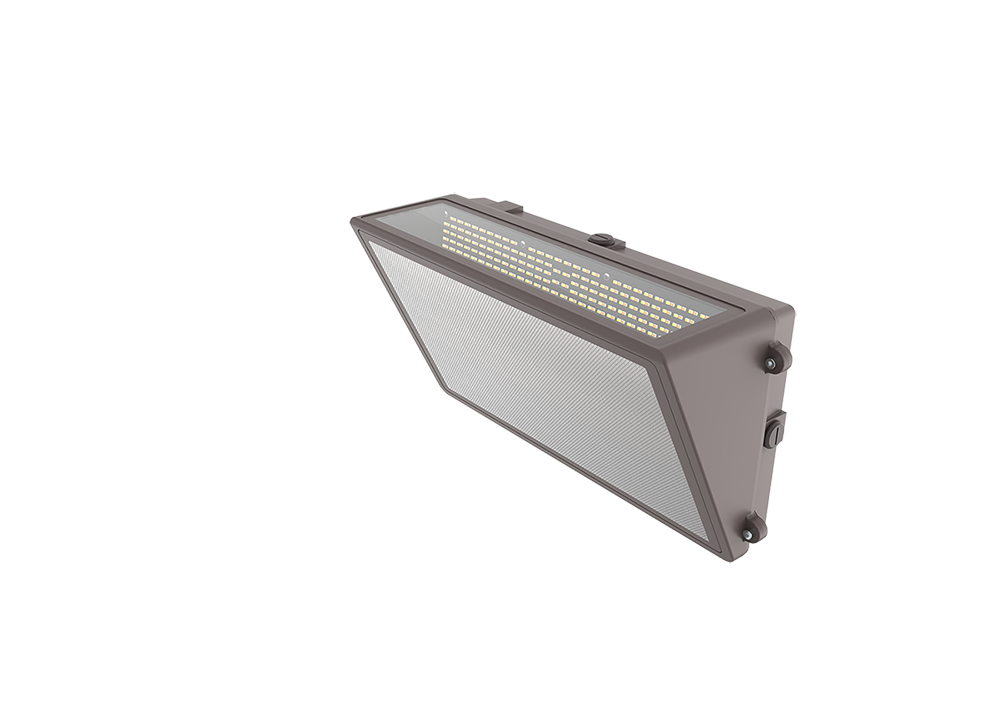

Rugged Construction – ADC12 die-cast aluminum, tempered glass lens, IP65 wet-location rated.
5-Year Warranty – Backed by a full commercial warranty.

Technical Specifications

Luminous Flux	4,800–15,000 lm (120–125 lm/W)
Input Voltage	120–347 VAC
Power Factor	>0.9
CRI	≥80
Operating Temperature	-40 °F to 113 °F (-40 °C to 45 °C)
Housing / Lens	ADC12 die-cast aluminum / tempered glass
Finish	Epoxy powder coating
Mounting	Wall mount (universal J-box pattern)
IP Rating	IP65
Certifications	UL 1598, DLC Premium, RoHS, FCC

Applications & Unique Design

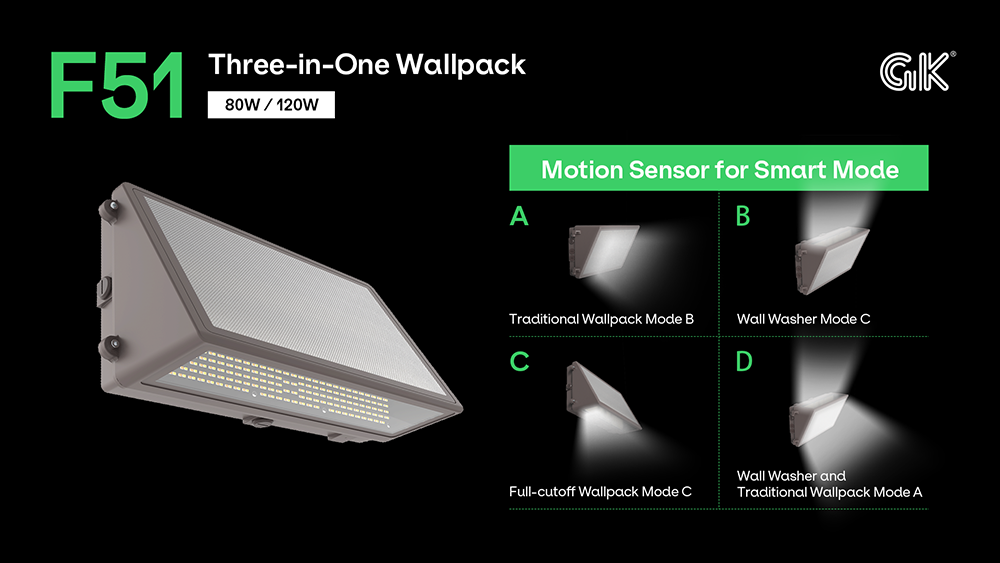

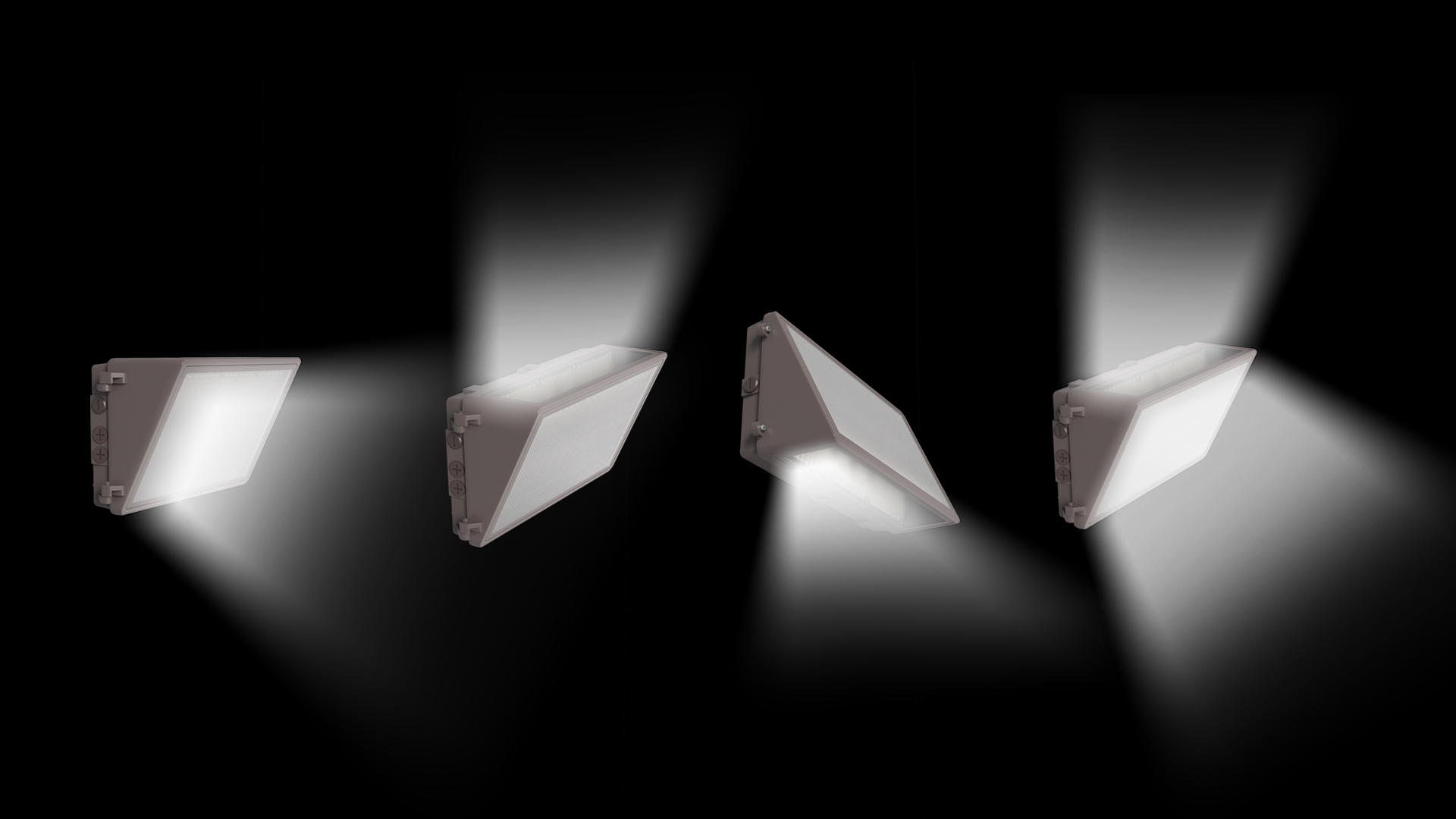

The F51 Three-in-One LED Wallpack is engineered for one-fixture-fits-all versatility. A patented optical cartridge lets installers rotate a single dial to choose among Traditional Wallpack, Full Cut-off, and Wall-Washer beam patterns on site—no extra housings, no additional inventory.

Retail Storefronts – Switch to wall-washer mode to highlight signage; then revert to full cut-off after hours for glare-free security.
Hospital & School Campuses – Traditional wallpack mode illuminates walkways; full cut-off keeps light out of patient or dorm-room windows.
Parking Garages & Loading Docks – High-output wall-washer floods vertical surfaces, improving CCTV clarity while minimizing shadows.
Public Facilities & Transit Stations – Photocell-driven dusk-to-dawn operation plus optional microwave/PIR motion sensors deliver code-compliant, energy-saving illumination without external controls.

Housed in rugged ADC12 die-cast aluminum with an IP65 wet-location rating, the F51 performs from –40 °F to 113 °F. One box, three beams, infinite adaptability—ideal for architects, contractors, and facility managers who demand performance, compliance, and inventory simplicity.
