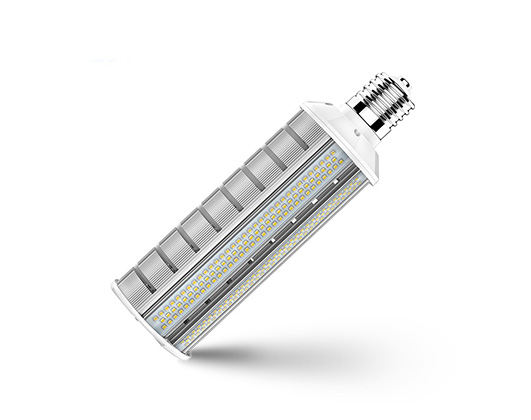

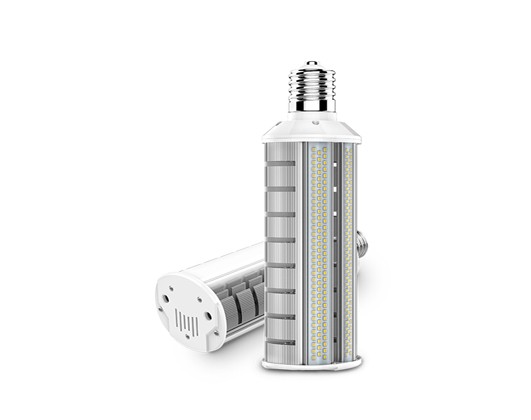

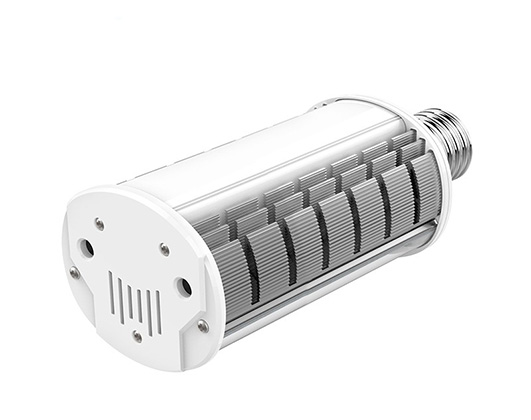

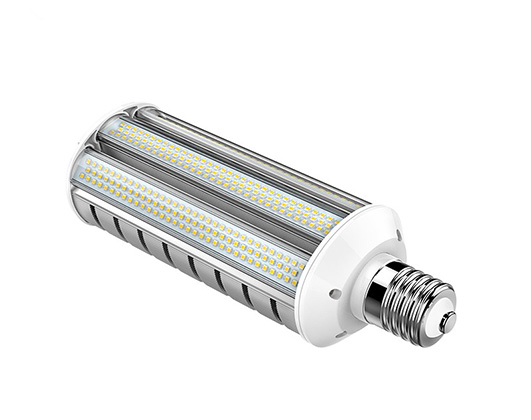

LED Corn LampParking Lot Area Lights
· Cost-effective solid state solution for LED area light applications, replacing high-wattage HID luminaires
· 150 lm/w ultra-high efficiency delivers superior performance over legacy HID
· 180° beam angle, lamp body folds out to provide directional lighting
· Install into mogul socket, turn the rotatable lamp body to face desired area, and unfold lamp to fully illuminate desired area; see installation manual for additional details
· Ballast bypass, connects to line voltage
· Flame-retardant casing
· Instant-on with no warm up
· DLC Qualified
· 5 years warranty

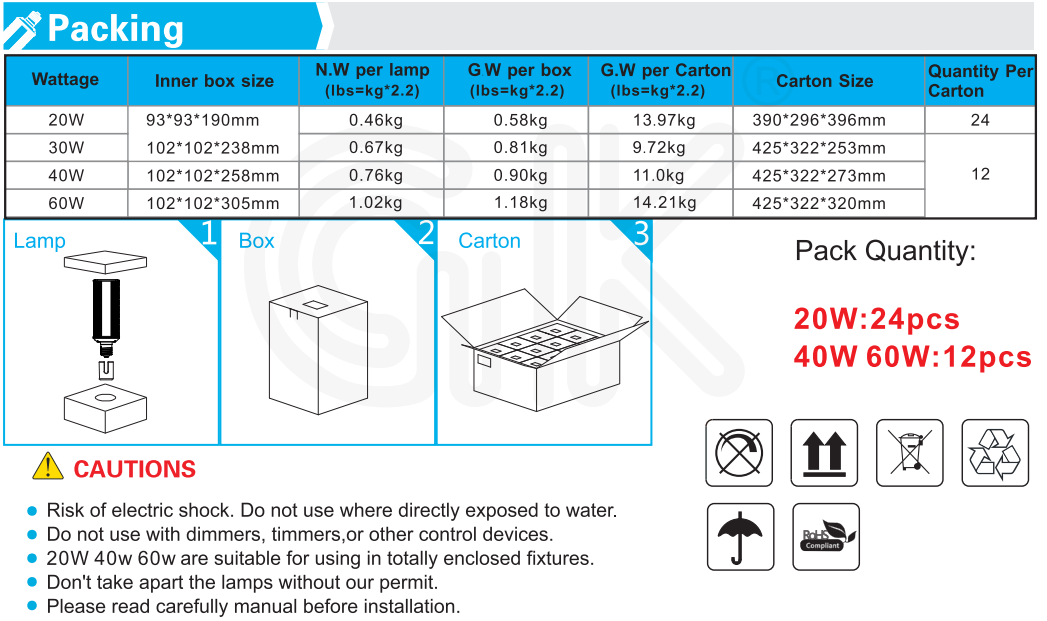

| MODEL NO | VOLTAGE | LUMEN | WEIGHT | EQUAL TO |
| GKS38-20W | 100-277VAC | 3000lm±200lm | NW 0.46kg GW 0.58kg | 100W |
| GKS38-30W | 100-277VAC | 4500lm±200lm | NW 0.67kg GW 0.81kg | 125W |
| GKS38-40W | 100-277VAC | 6000lm±200lm | NW 0.76kg | 200W |
| GKS38-60W | 100-277VAC | 9000lm±200lm | NW 1.02kg | 250W |

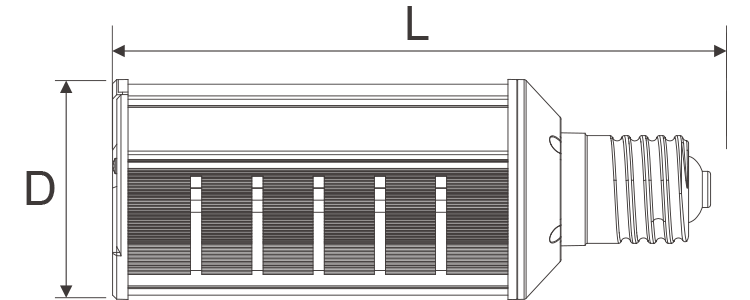

| WATTBASE | e26 | e27 | e39 | eX39 | e40 |
| 20W | ∅3.62*5.16 | ∅3.62*5.28 | ∅3.62*5.83 | ∅3.62*5.83 | ∅3.62*5.94 |
| 30W | | ∅3.62*7.15 | | | ∅3.62*7.78 |
| 40W | ∅3.62*7.80 | ∅3.62*7.95 | ∅3.62*8.46 | ∅3.62*8.47 | ∅3.62*8.58 |
| 60W | ∅3.62*9.96 | ∅3.62*10.08 | ∅3.62*10.71 | ∅3.62*10.71 | ∅3.62*10.83 |
LED Corn LampParking Lot Area Lights
Advantage:
China&US patent
DLC 5.1 CCT/WATT selectable
350° rotatable E base
Isolated driver, no dark area

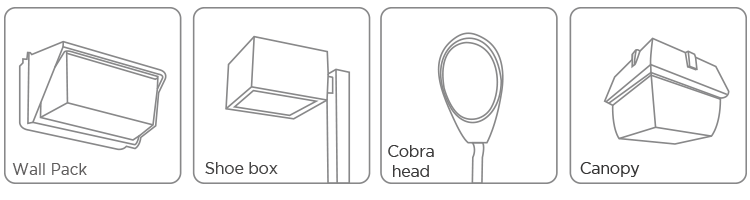

Perfect size for wall pack and cobra head
4 protections for led driver solution(Varistor/ lamp body/Power supply overheating, over-voltage protection)
most compact size suitable for enclosed fixture
DLC 5.1/UL/Erp/CE approval
Be equivalent to 100-250w HPS
Cost-effective solid state solution for led outdoor pathway light applications, replacing high-wattage HID luminaires,Commercial grade LED shoebox lights for parking lots and area light applications! 150 lm/w ultra-high efficiency delivers superior performance over legacy HID 360° beam angle, lamp body folds out to provide directional lighting Install into mogul socket, turn the rotatable lamp body to face the desired area, and unfold the lamp to fully illuminate the desired area; Ballast bypass connects to line voltage Flame-retardant casing Instant-on with no warm-up DLC Qualified 5 years warranty
