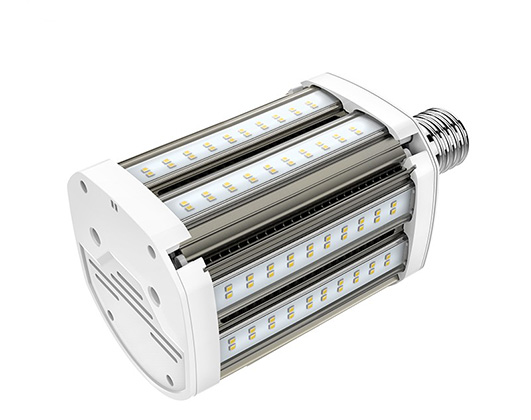

110 Watt Expanding Area LED Bulb E39 LED Shoebox Area Lights Fixture
Folding LED area light
Foldable lamp wing rotatable lamp base use for 80W to 110W shoe box,cobra head shape fixture HID retrofit typically for outdoor parking lot
LED HID Replacement: LED Area Light

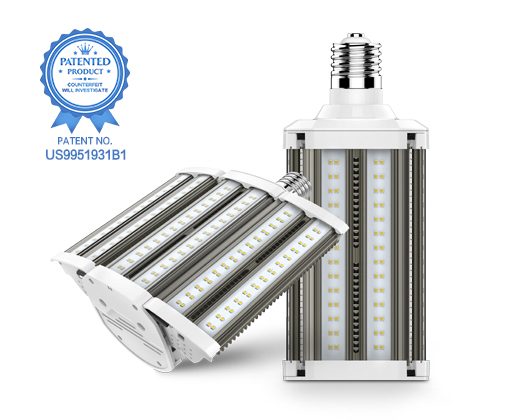

· China&US patent

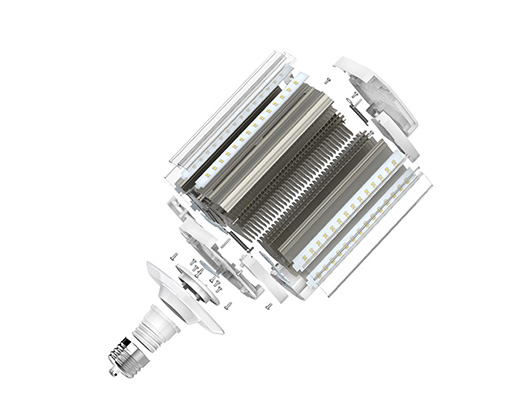

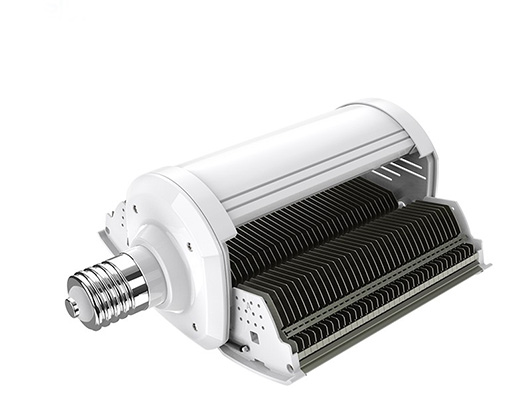

· Foldable heat sink with unique heat dissipation system
· Good heat dissipation & high lumen 150lm/w
· Perfect size design for shoebox
· 250w/400w HID retrofit

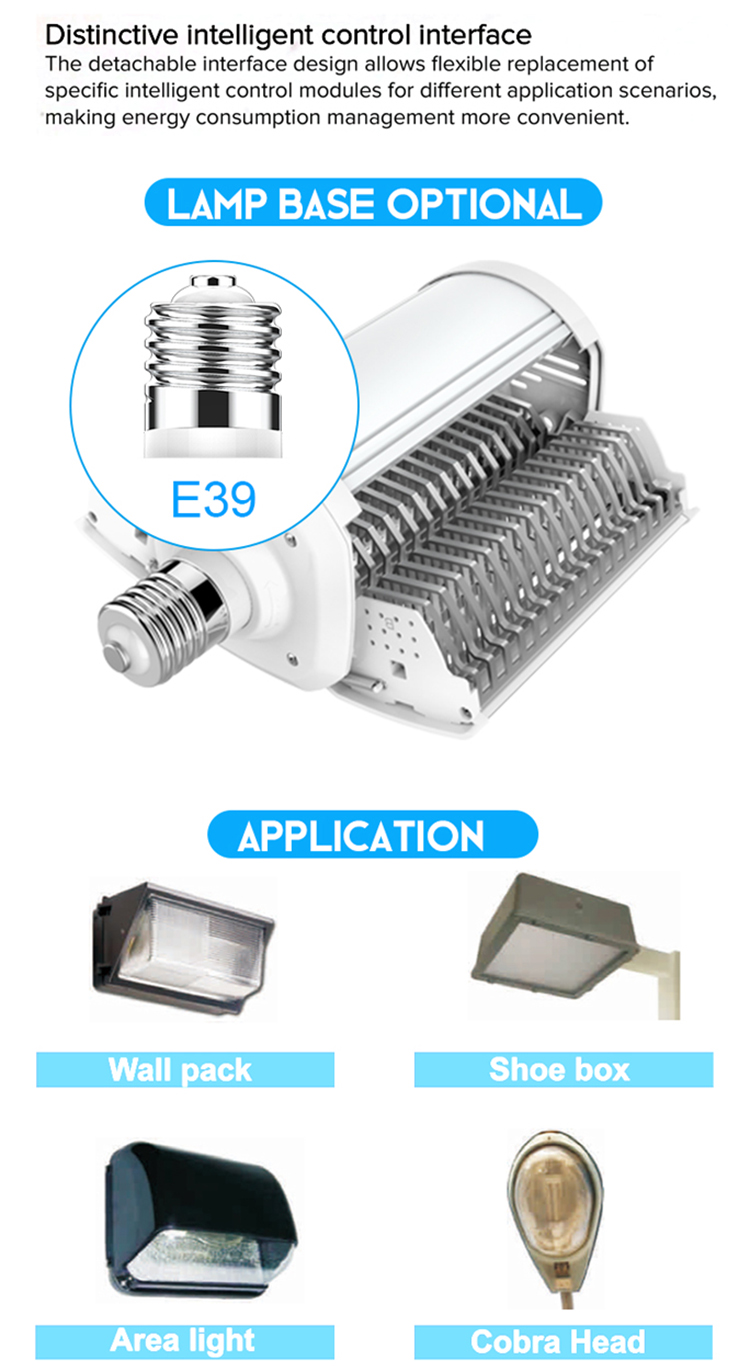

· Intelligent interface sensor port---MW sensor, PIR sensor, WIFI sensor etc
· 4 protections for led driver solution(Varistor/ lamp body/Power supply overheating, over-voltage protection)
· Reddot & IF award
· Cost-effective solid state solution for area light applications, replacing high-wattage HID luminaires
· 180° beam angle; lamp body folds out to provide directional lighting
· Install into mogul socket, turn the rotatable lamp body to face desired area, and unfold lamp to fully illuminate desired area; see installation manual additional details
· Ballast bypass; connects to line voltage
· Flame-retardant casing
· Instant-on with no warmup
· DLC Qualified
· 5 years warranty
| MODEL NO | VOLTAGE | LUMEN | WEIGHT | EQUAL TO |
| GKS35-80W | 100-277VAC | 1200lm±100lm | NW1.22kg GW 1.53kg | 250W |
| GKS35-110W | 100-277VAC | 16500lm±100lm | NW 1.62kg | 400W |

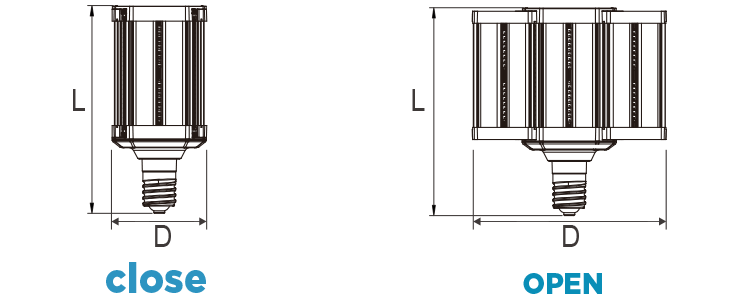

| WATTBASE | e39(close) | e39(open) | ex39(close) | ex39(open) | ex40(close) | ex40(open) |
| 80W | ∅4.37*8.70 | ∅9.02*8.70 | ∅4.37*8.45 | ∅9.02*8.45 | ∅4.37*8.70 | ∅9.02*8.70 |
| 110W | ∅4.37*11.10 | ∅9.02*11.10 | ∅4.37*11.07 | ∅9.02*11.07 | ∅4.37*11.11 | ∅9.02*11.11 |
110 Watt Expanding Area LED Bulb E39 LED Shoebox Area Lights Fixture
110 Watt Expanding Area Lights are designed to offer better security, more lumens, and higher cost savings. Our Expanding Area Lights can offer energy savings of 70% or greater over traditional metal halide or high-pressure sodium lighting. Our LEDs are optimal for both new construction and retrofit installation.

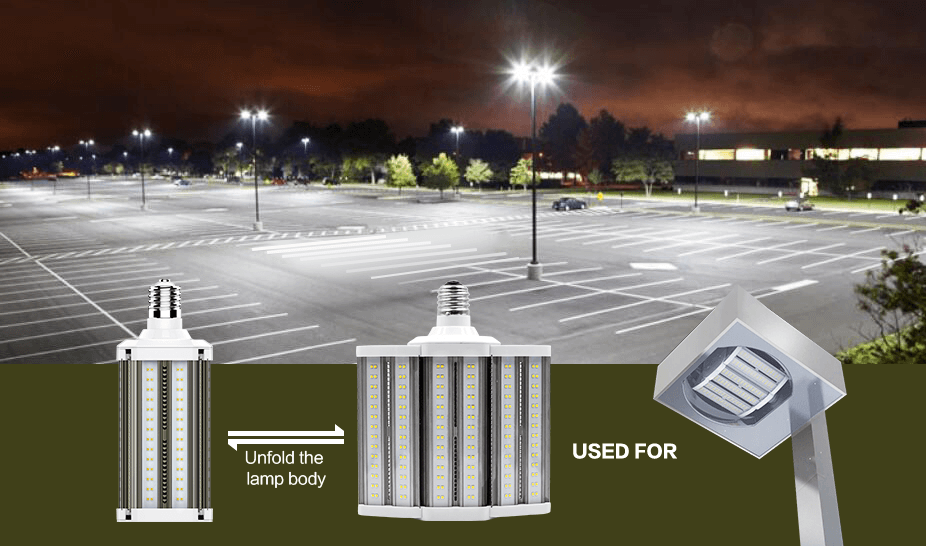

Where can I apply the LED area light/ LED parking lot light?
This kind of LED area light is typically use for outdoor parking lot, cause the parking lot fixture is always the shoe box type, it also applies for wall pack, cobra
110 Watt Expanding Area Lights are designed to offer better security, more lumens, and higher cost savings. Our Expanding Area Lights can offer energy savings of 70% or greater over traditional metal halide or high-pressure sodium lighting. Our LEDs are optimal for both new construction and retrofit installation.Shoebox and more with Led Area Light commercial light fixtures. GK's area Lights delivers class-leading energy efficiency.
